GIGABYTE B650 EAGLE AX Motherboard GIGABYTE B650 EAGLE AX Motherboard GIGABYTE B650 EAGLE AX Motherboard GIGABYTE B650 EAGLE AX Motherboard GIGABYTE B650 EAGLE AX Motherboard GIGABYTE B650 EAGLE AX Motherboard

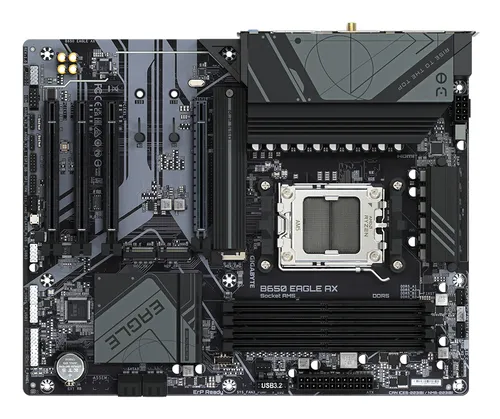

GIGABYTE B650 EAGLE AX Motherboard

1 / 6

GIGABYTE

GIGABYTE B650 EAGLE AX Motherboard

4 DDR5 memory slots up to 7600 MHz, 4 M.2 slots and Wi-Fi

Manufacturer reference B650 EAGLE AX

72 /100 Its best score: the most M.2 slots, rated "adequate" on its category’s scale.
See the price on Amazon This merchant’s price is not collected automatically: we would rather show none at all than a figure we could not date.

1 merchant

offers it on this market

What the GIGABYTE B650 EAGLE AX Motherboard is worth

The GIGABYTE B650 EAGLE AX is a motherboard fitted with 4 DDR5 memory slots, supporting up to 256 GB total capacity at speeds up to 7600 MHz.

It offers 4 M.2 slots for storage, 6 SATA ports, and built in 7.1 channel audio. The rear panel includes USB and video outputs, along with integrated Wi-Fi. The manufacturer states a 3 year warranty.

Measuring 305 mm by 244 mm and weighing 1943 g, it suits builders who need a motherboard able to handle multiple M.2 drives and a large amount of system memory.

What the spec sheet says

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B650 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3

Its scores, criterion by criterion

Scores out of 100, calculated from the datasheet and compared with the market. The full method is public.

M.2 slots Adequate

3 · category median: 2

Connectivity Adequate

2 · category median: 2

Storage Adequate

4 · category median: 4

Memory Adequate

256 GB · category median: 256 GB

All offers

Amazon Price not collected View

Kalyneo only shows a price when it has been collected automatically from the merchant, together with its collection date. For merchants whose prices are not connected, the page links to the merchant without showing a price. No price is ever entered by hand.

Documents

What the manufacturer publishes about this model. Each document opens in a new tab.

Manual PDF 1.5 MB

Specifications

Processor 4
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory 10
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 256 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max) 7600 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers 6
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 7
RAID support Yes
RAID levels 0, 1, 10
Graphics 5
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0
Discrete graphics support Yes
Internal I/O 17
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 3
EPS power connector (8-pin) Yes
TPM connector Yes
Serial port headers 1
12V power connector Yes
Number of water pump connectors 2
RGB LED pin header Yes
Number of RGB LED pin headers 4
Rear panel I/O ports 13
USB 2.0 ports quantity 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
PS/2 ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Line-in Yes
Microphone in Yes
WiFi-AP antenna jack 2
Network 9
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model Realtek RTL8852CE
Bluetooth Yes
Bluetooth version 5.3
Features 10
Motherboard chipset AMD B650
Audio output channels 7.1 channels
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Audio chip Realtek ALC897
Product colour Brown
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots 9
PCI Express x16 (Gen 3.x) slots 3
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 3
1st M.2 largest key size 25110
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
BIOS 6
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Battery 6
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery capacity 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data 1
Package weight 1.94 kg
Weight & dimensions 3
Width 305 mm
Depth 244 mm
Height 35 mm
Packaging content 4
Batteries included Yes
Antenna included Yes
Screws included Yes
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Technical details 1
Warranty period 3 year(s)

Who this model suits

It’s for you if

Your first criterion is the M.2 slots: it happens to be its best score.
You want a good score on the connectivity, above its category average.
You prefer a model tracked across several merchants, to buy at the right time.

Skip it if

Its lowest score is on the memory capacity: skip it if that is decisive for you.

Frequently asked questions

Answers drawn from this model’s datasheet.

The motherboard offers 4 M.2 slots, allowing multiple NVMe SSDs to be installed simultaneously.

The motherboard supports up to 256 GB of RAM across 4 slots, with DDR5 frequency up to 7600 MHz.

Yes, Wi-Fi is built into the motherboard, no additional module is needed.
