ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

1 / 15

ASUS

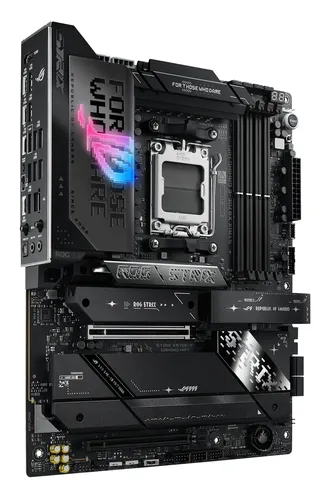

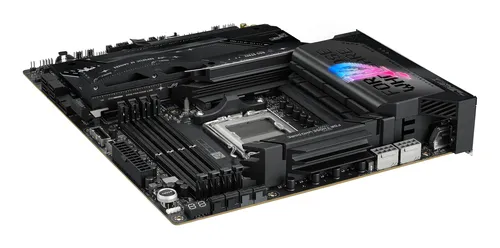

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

Wifi 7, 5 Gigabit Ethernet and X870E chipset for AM5 socket

Manufacturer reference 90MB1IB0-M0EAY0

79 /100 Its best score: the richest connectivity, rated "very complete" on its category’s scale.
See the price on Amazon This merchant’s price is not collected automatically: we would rather show none at all than a figure we could not date.

1 merchant

offers it on this market

What the ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX is worth

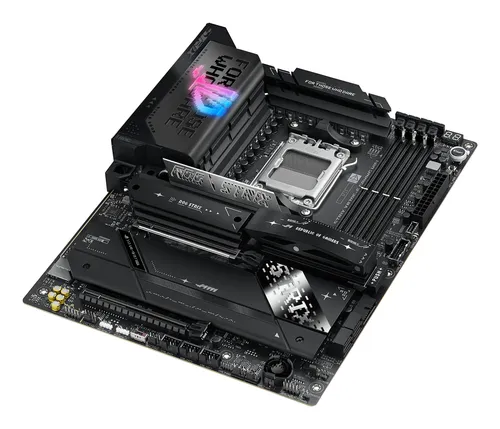

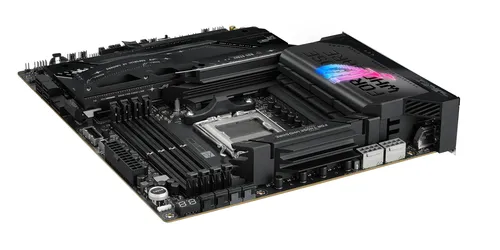

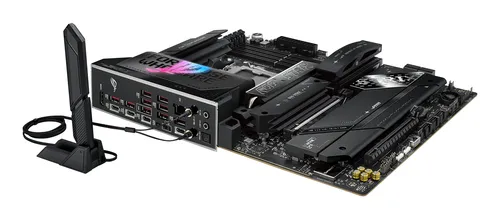

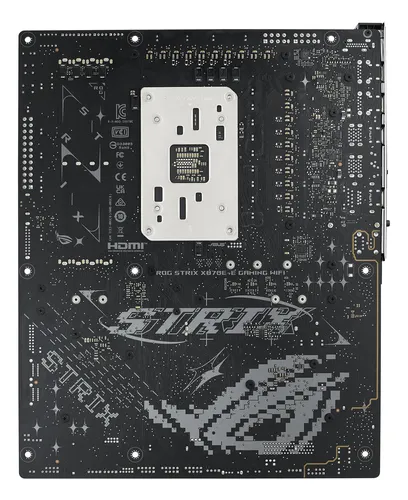

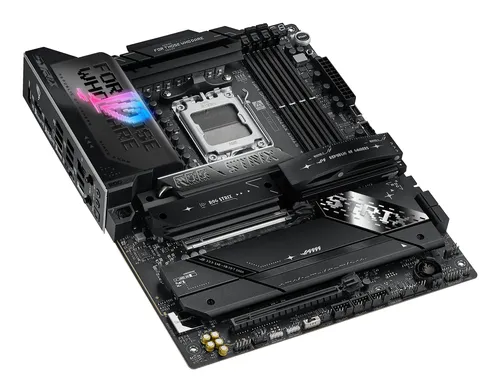

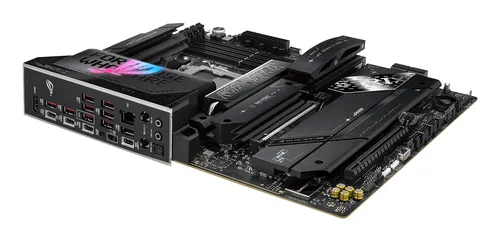

The ASUS ROG STRIX X870E-E GAMING WIFI is an ATX motherboard designed for AMD AM5 socket processors, built on the AMD X870E chipset and supporting DDR5-SDRAM memory across 4 slots, up to 192 GB.

It offers 5 M.2 slots and 4 SATA III connectors, for a total of 9 supported storage units, with RAID support at levels 0, 1, 10 and 5. Connectivity includes Wifi 7 (802.11be), Bluetooth 5.4 and a 5 Gigabit Ethernet port, along with a range of USB ports including two USB4 Gen 2x2 ports and nine USB 3.2 Gen 2 type A ports. Audio is handled by a Realtek ALC4080 chip in 7.1 channels.

This product suits users building a recent AM5 setup who need extensive network and storage connectivity, with an X870E chipset supporting PCI Express Gen 5.x graphics cards.

What the spec sheet says

  • AMD Socket AM5
  • PC ATX AMD X870E Realtek ALC4080 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Its scores, criterion by criterion

Scores out of 100, calculated from the datasheet and compared with the market. The full method is public.

Connectivity Very complete

9 · category median: 2

M.2 slots Very complete

5 · category median: 2

Storage Adequate

4 · category median: 4

Memory Adequate

192 GB · category median: 256 GB

All offers

Amazon Price not collected View

Kalyneo only shows a price when it has been collected automatically from the merchant, together with its collection date. For merchants whose prices are not connected, the page links to the merchant without showing a price. No price is ever entered by hand.

Documents

What the manufacturer publishes about this model. Each document opens in a new tab.

User manual PDF 3.3 MB

Specifications

Processor 2
Processor manufacturer AMD
Processor socket Socket AM5
Memory 7
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 192 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Unbuffered memory Yes
Storage controllers 6
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 9
RAID support Yes
RAID levels 0, 1, 10, 5
Graphics 2
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O 9
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
USB 3.2 Gen 2x2 connectors 1
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 5
12V power connector Yes

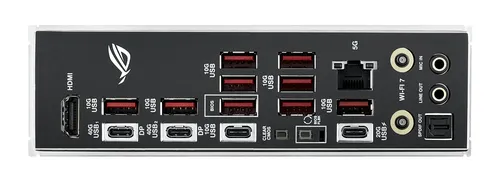

Rear panel I/O ports 10
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB4 Gen 2x2 ports quantity 2
Headphone outputs 1
Microphone in Yes
S/PDIF out port Yes
WiFi-AP antenna jack 1
Network 7
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features 8
Motherboard chipset AMD X870E
Audio output channels 7.1 channels
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Audio chip Realtek ALC4080
Product colour Black
Windows operating systems supported Windows 11 x64
Expansion slots 3
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 5
BIOS 3
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Packaging data 1
Package weight 3.02 kg
Weight & dimensions 3
Width 305 mm
Depth 244 mm
Height 50 mm

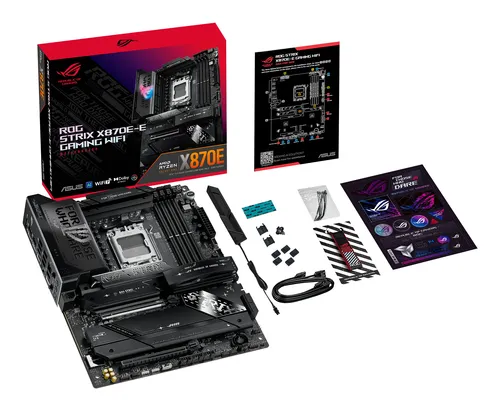

Packaging content 1
Cables included SATA
Other features 1
Weight 2.06 kg

Who this model suits

It’s for you if

Your first criterion is the connectivity: it happens to be its best score.
You want a good score on the M.2 slots, above its category average.
You prefer a model tracked across several merchants, to buy at the right time.

Skip it if

Its lowest score is on the memory capacity: skip it if that is decisive for you.

Frequently asked questions

Answers drawn from this model’s datasheet.

The motherboard has 5 M.2 slots for SSDs, in addition to 4 SATA III connectors, for a total of 9 supported storage devices.

Yes, it includes Wifi 7 (802.11be) as well as Bluetooth 5.4 and a 5 Gigabit Ethernet network card.

The motherboard supports RAID levels 0, 1, 10 and 5 for storage devices.
